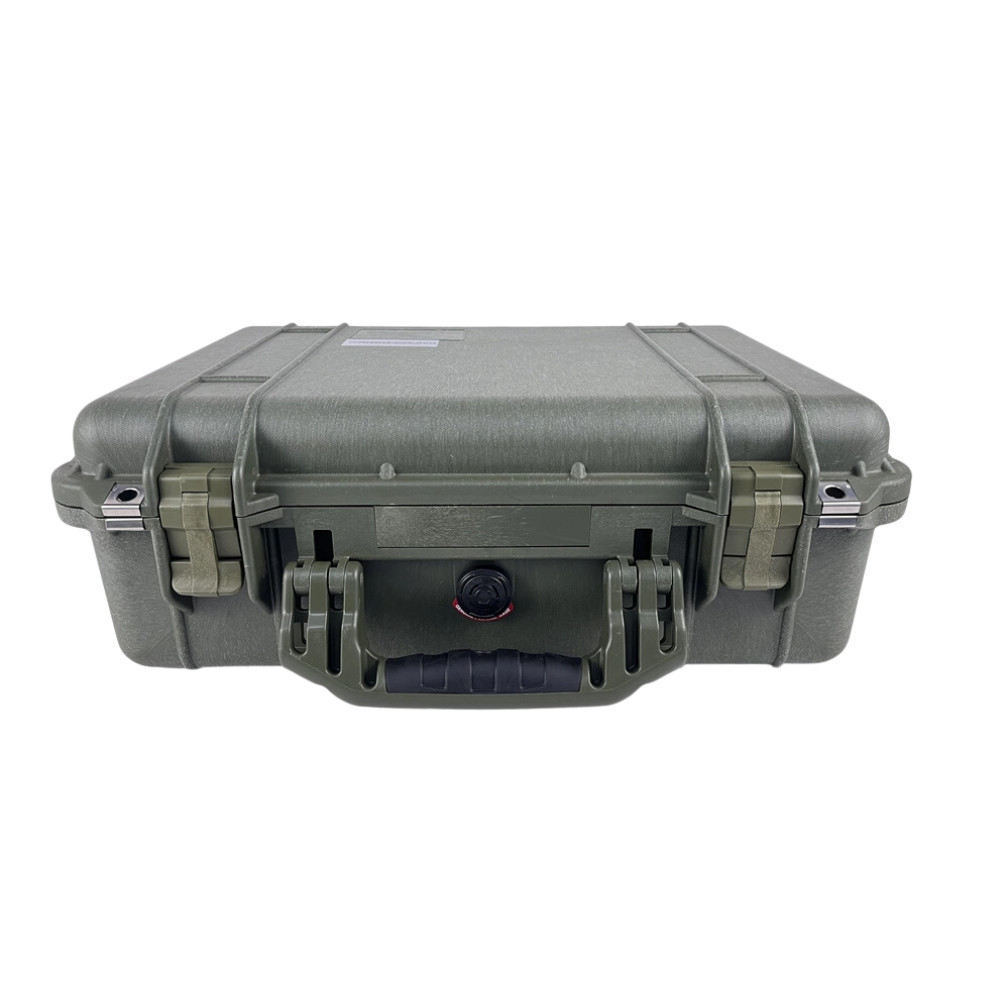

Portable Military Grade 5KM 6KM 7KM 10KM 360° Full Airspace IP66 12KG Weight Handheld Portable Drone Detector Detection

The EXLZ-TCX1 Portable UAV Detection and Positioning System uses advanced cognitive radio protocols (CRPC) and message-level protocol analysis technology to detect, identify, and track civilian drones. This system provides real-time location and trajectory tracking, making it ideal for airports, prisons, industrial facilities, national defense, public security, and major event venues.

Main Features

• Passive Detection: Detects signals without emitting any, identifying drone models and electronic ID fingerprints.
• Accurate Identification: Distinguishes between different drones of the same brand, model, and frequency band.
• Precise Positioning: Indicates UAV target positions accurately.
• Blacklist/Whitelist Management: Supports one-click marking of black and white lists.
• Detection Coverage: Supports DJI and other mainstream brands, covering over 98% of market models.
• Multi-Target Tracking: Tracks multiple drones simultaneously, displaying flight trajectories in different colors.
• Intrusion Alarm: Issues audible and visual alarms upon detecting drone intrusion.
• Pilot Positioning: Determines the location of the drone operator.
• Intelligent Platform: Equipped with a professional display and command system, supporting both unattended and manual modes.

Technical Specifications

Usage Instructions

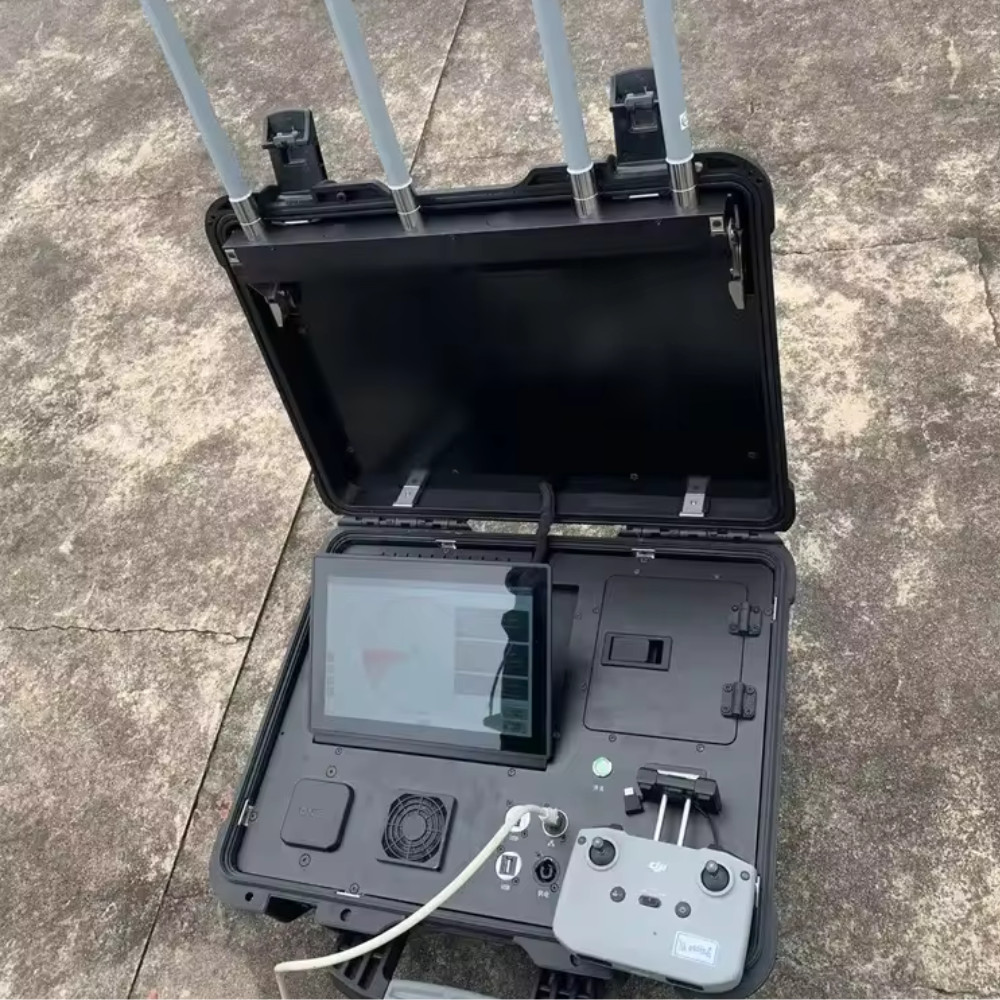

Device Deployment and Usage

1. Choose a Suitable Environment: Select an open outdoor area, typically high ground or a building rooftop.

2. Antenna Connection: Connect the receiving frequency band antennas to the corresponding interfaces on the radio processing unit.

3. Power and Network Connection:

• Network Connection: Use optical fiber or standard network cable to connect the radio processing unit to the host terminal via TCP/IP interface; or connect to a wireless network or 4G network.
• Power Connection: The device has a built-in battery for direct power; 220V AC input can be connected via fixed power supply or UPS power supply.

System Operation

1. Start the System: After powering on, the display interface automatically starts the UAV defense system and enters the main interface.

2. Passive Detection: The system automatically alarms upon detecting a UAV, displaying frequency band information and approximate location.

3. Full Frequency Scanning: Enables full frequency signal scanning detection for DIY UAV signals within 70MHz-6000MHz range.

4. Whitelist Setup: Add detected UAVs to the whitelist through the menu.

5. View Historical Events: View UAV historical event list, including discovery time, duration, model, and identification code.

6. View Statistical Reports: View UAV incident statistics, including the number of UAVs discovered, common aircraft models, and invasion times.

7. AI Learning: Intelligent recognition learning for unknown UAVs.

8. View Device Status: Monitor the status of controllers, computing engines, and sensors through device management.

EagleX was established in 2017 and is based in Shenzhen, China. It is a high-tech company specializing in the manufacture of drone jamming equipment. In the drone countermeasure industry, EagleX focuses on designing and producing various advanced drone jamming systems. The company has developed several "EX" anti-drone systems, which have received multiple patents.

EagleX has complete testing and certification qualifications, as well as extensive project delivery experience across various industries. Its systems have been successfully deployed in sectors like energy, airports, tourist sites, and prisons. EagleX has also provided low-altitude security for significant events and locations both in China and around the world, creating substantial value and social impact. Thanks to its excellent equipment performance, stable system capabilities, and solid service system, EagleX has become a leading provider of comprehensive system-level anti-drone solutions in the industry.
