| Brand Name : | EagleX or can be customized |
| Model Number : | EXLY-A433 |
| Certification : | CE, FCC |
| Delivery Time : | 7days |
| Payment Terms : | LC,TT,CAD,Alipay |
| Supply Ability : | According to the project |

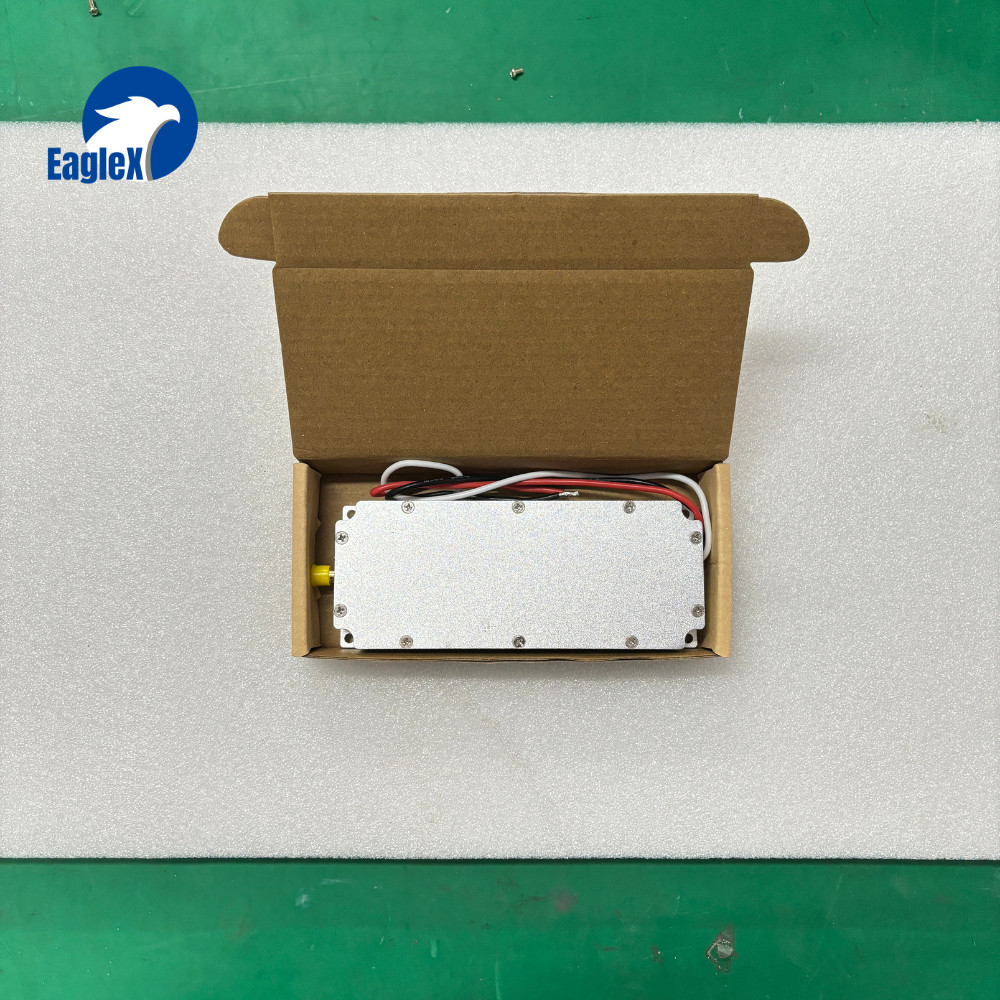

400MHz 433MHz 440MHz 20W/30W/40W/50W Amplifier Module Radio Frequency Wireless Communication Anti FPV RF Module
Designed for the 433 MHz frequency band, the anti-drone RF module offers customizable output power ranging from 20W to 50W. The module is compact in size, measuring 12.5 cm long, 6 cm wide, and 2 cm high, and is lightweight at only 0.28 kg. It operates at 28V and 2A to 5A. The output is connected via an SMA connector, ensuring a secure and reliable connection.
The module is rated at 40% power amplification efficiency and is capable of operating over a wide temperature range of -30°C to +65°C. The output standing wave ratio is maintained at ≤ 1.5, indicating minimal signal reflection and maximum power transfer. The module includes a power switch control with high and low level settings, and its flatness is maintained within ±1 dB, ensuring consistent performance throughout its entire operating range.
In addition, EagleX can customize RF modules for specialized frequency bands for you, please send us an inquiry.
|
|
